Shelly 2PM Gen3 — 2-channel Wi-Fi relay with power metering and roller shutter mode
Shelly 2PM Gen3 — 2-channel Wi-Fi relay with power metering and roller shutter mode
Two circuits controlled from your phone, or one roller shutter, in a 37 × 42 × 16 mm housing.
The Shelly 2PM Gen3 is a dual-channel smart relay that fits into a wall box, behind an existing switch. It controls two independent circuits — two light points, a pump, a gate — or, in roller shutter mode, a single shutter or awning motor with position and blade angle management. Each channel measures voltage and current, providing real-time power consumption. Wi-Fi and Bluetooth are built-in: no gateway or hub needed.
Highlights
- Two independent channels of 10 A each (16 A total, 18 A peak)
- Roller shutter / awning mode with position and blade angle control
- Power consumption metering per channel: built-in AC voltmeter and ammeter
- Wi-Fi 802.11 b/g/n and Bluetooth 4.2 — works without a gateway or hub
- Matter compatible from firmware 1.6.0, and KNXnet/IP in switch mode from 1.5.0
- Alexa, Google Home, SmartThings, and Home Assistant
- Black plastic housing 37 × 42 × 16 mm, 30 g — fits behind the switch
- Built-in protections: overheating, overvoltage, overcurrent, overpower
Key Features

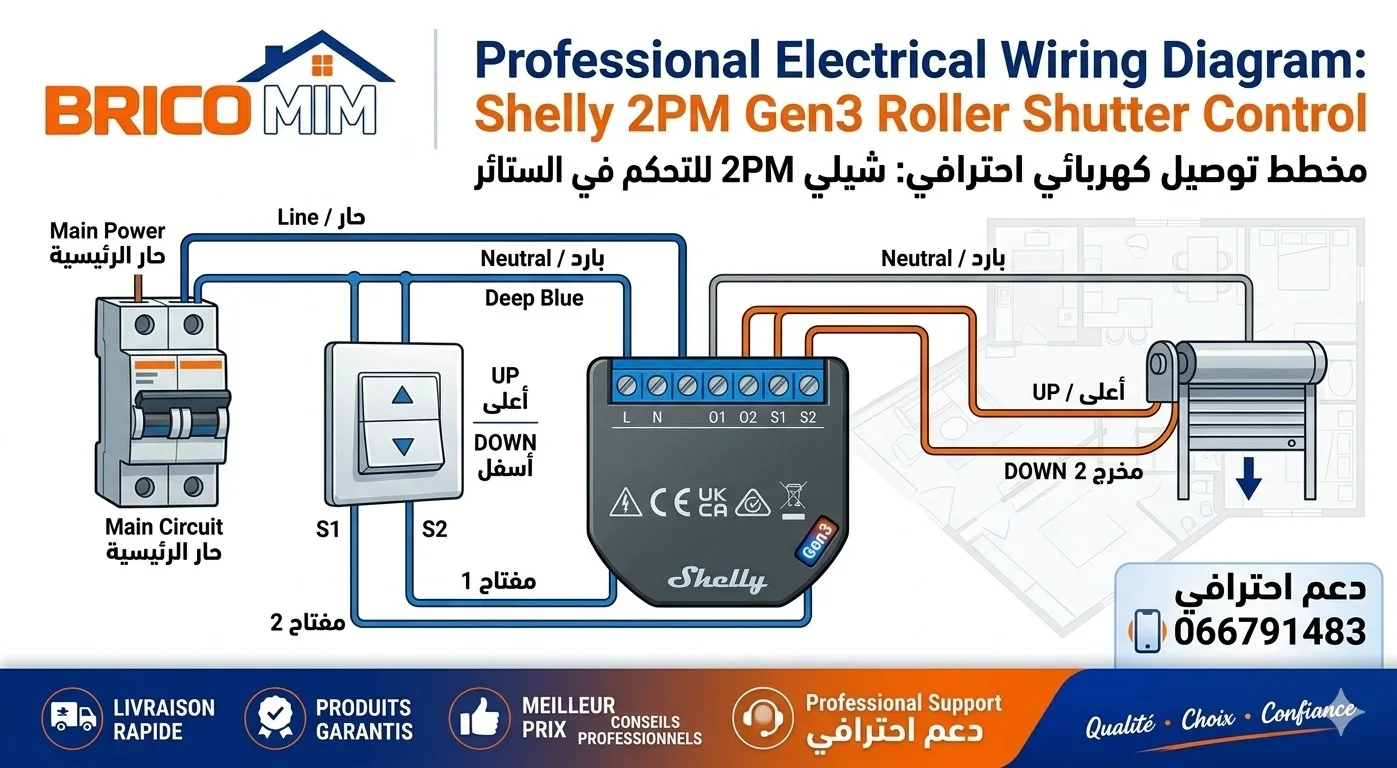

- Two circuits, or one shutter — not both — In switch mode, the device controls two completely independent circuits: two lights, a light and an outlet, or a pump and a gate. In shutter mode, both outputs work together for a single motor: up, down, percentage position, and blade angle. One shutter per device — for two shutters, two Shelly 2PM Gen3 units are required.
- Consumption, channel by channel — The 2PM Gen3 includes an AC voltmeter and ammeter: the app displays the real consumption of each channel, not an estimate. This allows you to see the actual cost of a water heater, a pump, or a lighting circuit, and identify any device consuming more than it should.
- No hub, no gateway — Wi-Fi and Bluetooth are built into the device. It connects directly to your router: nothing else to buy. It supports Matter from firmware 1.6.0, making it usable with compatible smart home ecosystems, and can be controlled via the Shelly app, Home Assistant, Alexa, Google Home, or SmartThings.
- Where it installs — The housing is 37 × 42 × 16 mm and weighs 30 g: it slides behind a switch in a flush-mount box or into a junction box. It connects to 110–240 V AC or 24 V DC power with 0.5 to 4 mm² wires. An upstream circuit breaker of 16 A maximum, B or C curve, is required.

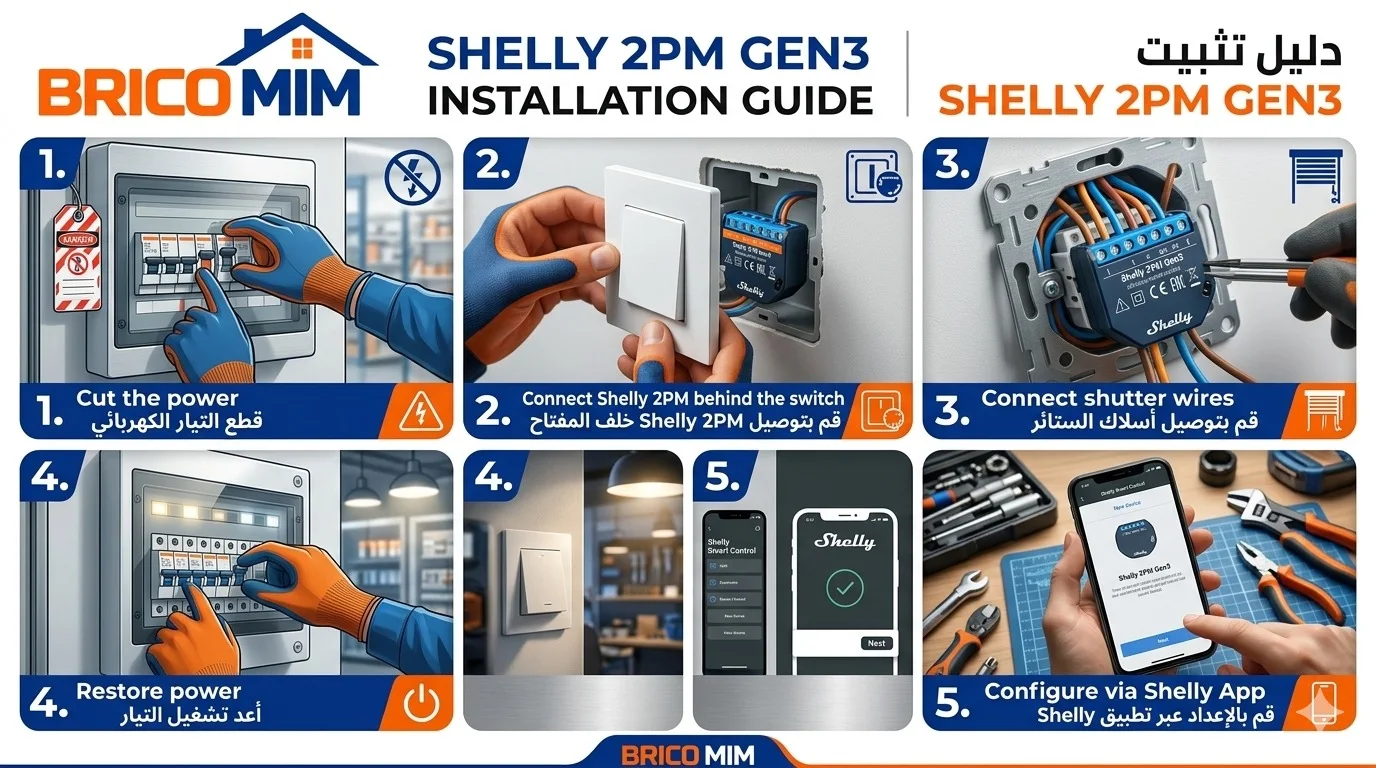

- Electrician installation — The device is wired into a live installation that must be turned off first. Connection should be handled by an electrician: it is a matter of safety and compliance, not just convenience. For inductive loads (LED drivers, transformers, motors, fans, compressors), the manufacturer requires an RC snubber.

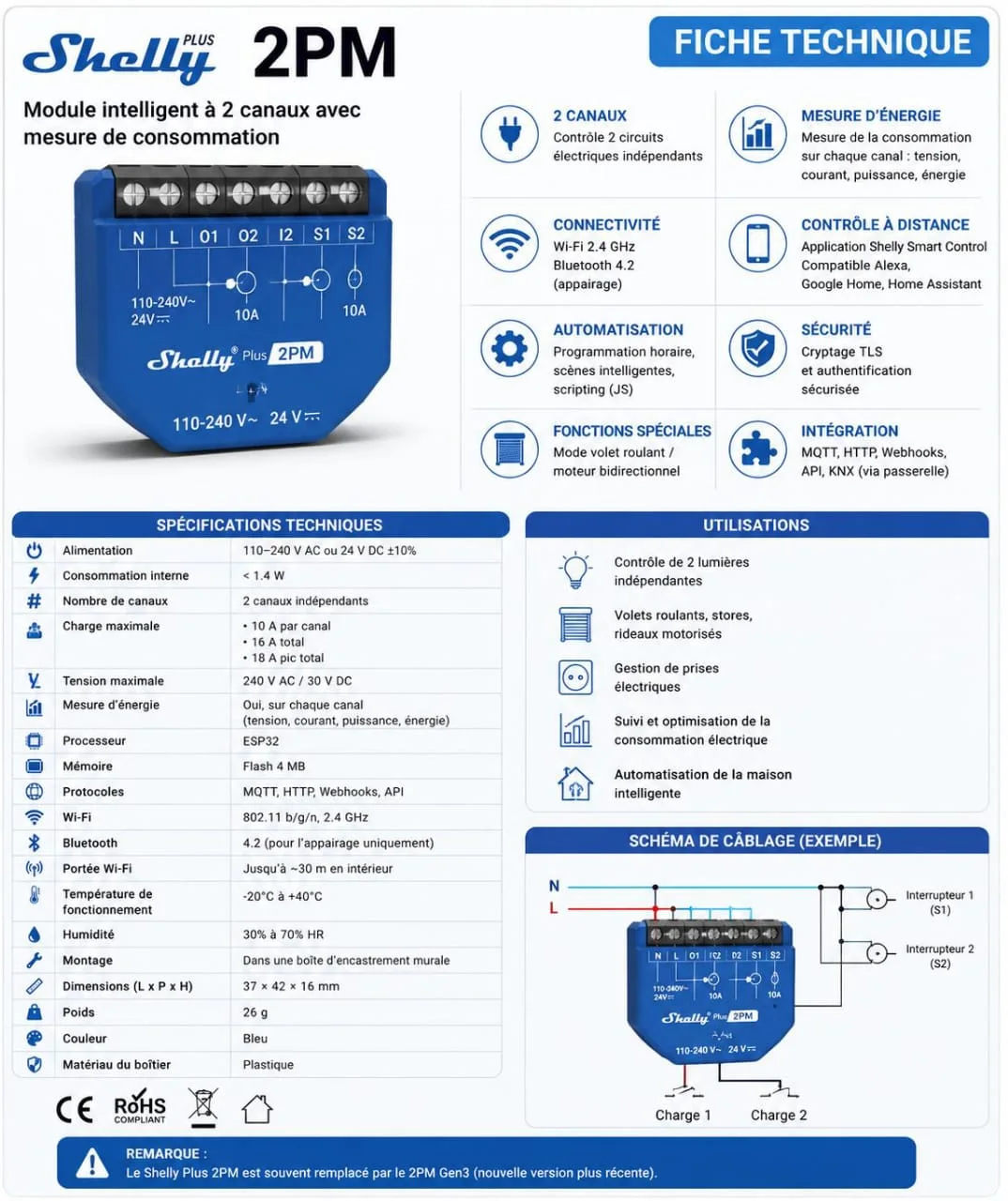

Technical Sheet
| Feature | Detail |
|---|---|
| Type | 2-channel smart relay, flush-mount |
| Max switching current (AC) | 10 A per channel, 16 A total, 18 A peak |
| Power supply | 110–240 V~ / 24 V⎓ (±10 %) |
| Manufacturer reference | S3SW-002P16EU |
| Max switching voltage | 240 V~ / 30 V⎓ |
| Max switching current (DC) | 10 A |
| Device power consumption | < 1.4 W |
| Integrated metering | AC voltmeter, AC ammeter, and internal temperature sensor |
| Wi-Fi | 802.11 b/g/n, 2412–2472 MHz — up to 30 m indoors, 50 m outdoors |
| Bluetooth | 4.2, 2402–2480 MHz — up to 10 m indoors, 30 m outdoors |
| Dimensions (H × W × D) | 37 × 42 × 16 mm (±0.5 mm) |
| Weight | 30 g |
| Housing | Black plastic, black terminals |
| Mounting | Flush-mount wall box |
| Operating temperature | −20 °C to 40 °C |
| Humidity | 30% to 70% RH |
| Max altitude | 2,000 m |
| Screw terminals | 0.5 to 4 mm² conductors, stripping 6–7 mm, torque 0.4 Nm |
| External protection required | B or C curve circuit breaker, 16 A max, min 6 kA breaking capacity |
| Built-in protections | Overheating, overvoltage, overcurrent, overpower, obstacle detection, and safety switch in shutter mode |
| Supported loads | Resistive, capacitive, and inductive with RC snubber |
| Processor | ESP-Shelly-C38F — 8 MB Flash, 256 KB RAM |
| Protocols | Matter (firmware 1.6.0+), MQTT, WebSocket, HTTPS, UDP, TLS, webhooks, scripts, KNXnet/IP (switch mode, firmware 1.5.0+) |
| Integrations | Amazon Alexa, Google Home, Samsung SmartThings, Home Assistant |
| Scheduling | 20 schedules and 20 webhooks (5 URLs per webhook) |
| Default network name | Shelly2PMG3-XXXXXXXXXXXX |
Fast delivery & secure payment
Shipping throughout Morocco, with payment on delivery. Our team is here to assist you via WhatsApp for setup and accessory selection.
Included in your purchase
- 1 × Shelly 2PM Gen3 (part no. S3SW-002P16EU) — black casing
- Manufacturer documentation provided with the device
- RC snubber for inductive loads: not included, please contact us
- Installation by an electrician: at your expense, we can refer you to one
Brico MIM After-Sales Service
The product arrives new in its original Shelly packaging. No warranty duration is communicated for this reference: we prefer to say nothing rather than provide an unverifiable figure.
Customer service via phone, WhatsApp, and email, Monday to Saturday.
Frequently asked questions
Can I control two roller shutters with one device?
No. In roller shutter mode, both outputs work together on a single motor. For two shutters, you need two devices.
Is a Shelly gateway or hub required?
No. Wi-Fi and Bluetooth are integrated: the device connects directly to your home router.
What power can it control?
10 A per channel, 16 A total, and 18 A peak, at a maximum of 240 V AC. Upstream, the manufacturer requires a circuit breaker of 16 A maximum, B or C curve.
Does it fit behind a standard Moroccan wall switch?
The casing measures 37 × 42 × 16 mm. It fits in most flush-mounted boxes, but this depends on the depth of the box and the space already taken by wires. Your electrician can check this when opening the switch; if in doubt, send us a photo on WhatsApp.
Does it work with Home Assistant?
Yes, as well as with Amazon Alexa, Google Home, and Samsung SmartThings. It also exposes MQTT, WebSocket, HTTPS, UDP, and webhooks, and supports Matter from firmware 1.6.0.
Does it continue to work without internet?
The physical wall switch remains wired to the device and continues to control the load. Functions that rely on the cloud, however, require a connection.
What is the delivery time?
24 to 48 hours for the Casablanca–Rabat axis, 48 to 72 hours for other cities in Morocco.
