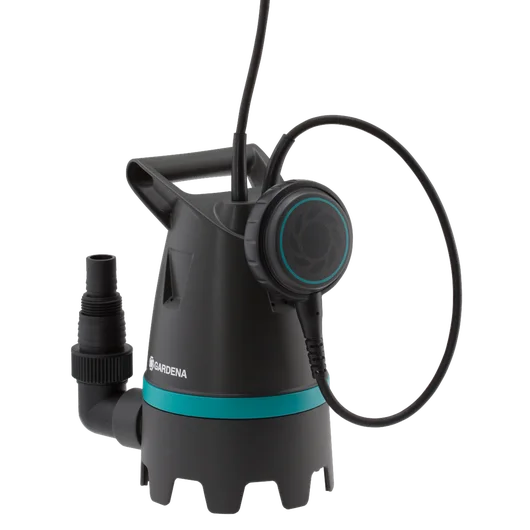

Dirty Water Submersible Pump 10500 — Gardena
10500 Dirty Water Submersible Pump — Gardena
Particles up to 25 mm handled by just a 400 W motor.
A basement flooded after a storm, a muddy construction pit, a sump filled with gravel: the 10500 pumps the water as it is, with no need for a pre-filter. Its adjustable float switch turns it on and off based on the water level, and its thermal protection stops the motor before it overheats.
It works where the water is dirty
- Gravel and debris up to 25 mm in diameter pass through the pump: you don't need to strain the water or clear the bottom before starting.
- Integrated thermal protection cuts the power if the motor overheats, for example, if the intake becomes blocked during pumping.
Main features
- Particles up to 25 mm — designed for water containing mud, sand, or grit.
- 400 W for 10500 l/h — the power consumption of a small motor with a maximum flow rate of 10500 liters per hour.
- Delivery head of 5.0 m — water can be sent up to five meters above the pump; the stated maximum pressure is 0.5 bar.
- Adjustable float switch — you choose the activation and cut-off levels based on the depth of the pit or inspection chamber.
- IP X8 rating — a design built for submerged operation up to a depth of 7 m.
- 3.7 kg and 10 m cable — it can be lowered with one hand and plugged in far from the water source.
Technical specifications
| Feature | Detail |
|---|---|
| Commercial reference | 9008-47 |
| EAN code (GTIN-13) | 4078500056786 |
| Water type | Dirty water |
| Nominal power | 400 W |
| Max. flow rate | 10500 l/h |
| Max. pressure | 0.5 bar |
| Max. delivery head | 5.0 m |
| Max. immersion depth | 7 m |
| Max. particle diameter | 25 mm |
| Max. liquid temperature | 35 °C |
| Weight | 3.7 kg |
| Cable length | 10 m |
| Power cable type | H05 RNF |
| IP code | IP X8 |
| Dimensions (L × W × H) | 21.6 × 15.1 × 25.7 cm |
Fast delivery & simple installation
Connect your discharge hose to the outlet, set the float height according to the water level you want to reach, and then place the pump at the bottom of the basement or pit. The 10 m cable is generally enough to reach a power outlet on the floor above. Delivery throughout Morocco, payment upon receipt of the parcel.
Included in your purchase
- 1 Gardena 10500 submersible pump for dirty water (ref. 9008-47)
- 10 m power cable, H05 RNF type, attached to the pump
- Adjustable float switch, integrated into the pump
Brico MIM After-Sales Service
The pump is shipped to you brand new, in its original packaging. Gardena does not publish a warranty period for the 9008-47 reference, so we do not display one here. However, our team remains reachable after your purchase for float switch adjustments or any usage questions.
Customer service available by phone, WhatsApp, and email, Monday to Saturday.
Frequently asked questions
What is the difference compared to a clear water pump?
A clear water pump only accepts very fine particles. This model allows debris up to 25 mm in diameter to pass, enabling it to work in muddy or gritty water. If your water is clean, the 8600 or 9000 models from the store are more suitable.
Do I need to stay nearby while pumping?
No. The float switch triggers and stops the pump based on the water level, and you can adjust these levels. Thermal protection kicks in on its own if the motor gets too hot.
How high can it lift the water?
5.0 meters maximum, for a maximum pressure of 0.5 bar. The higher the discharge point, the lower the actual flow rate obtained.
Can it stay submerged permanently?
Its IP X8 rating corresponds to operation underwater, up to 7 m immersion depth. The liquid temperature must not exceed 35 °C.
Does it fit in a narrow manhole?

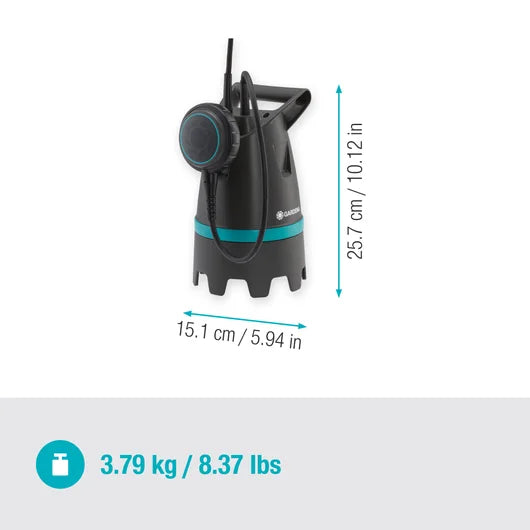

It measures 21.6 cm long, 15.1 cm wide, and 25.7 cm high, and weighs 3.7 kg. Measure your manhole or sump opening before ordering.
What is the delivery time?
24 to 48 hours on the Casablanca–Rabat axis, 48 to 72 hours for other cities.
