3700/4 Pressure Tank Unit — Gardena

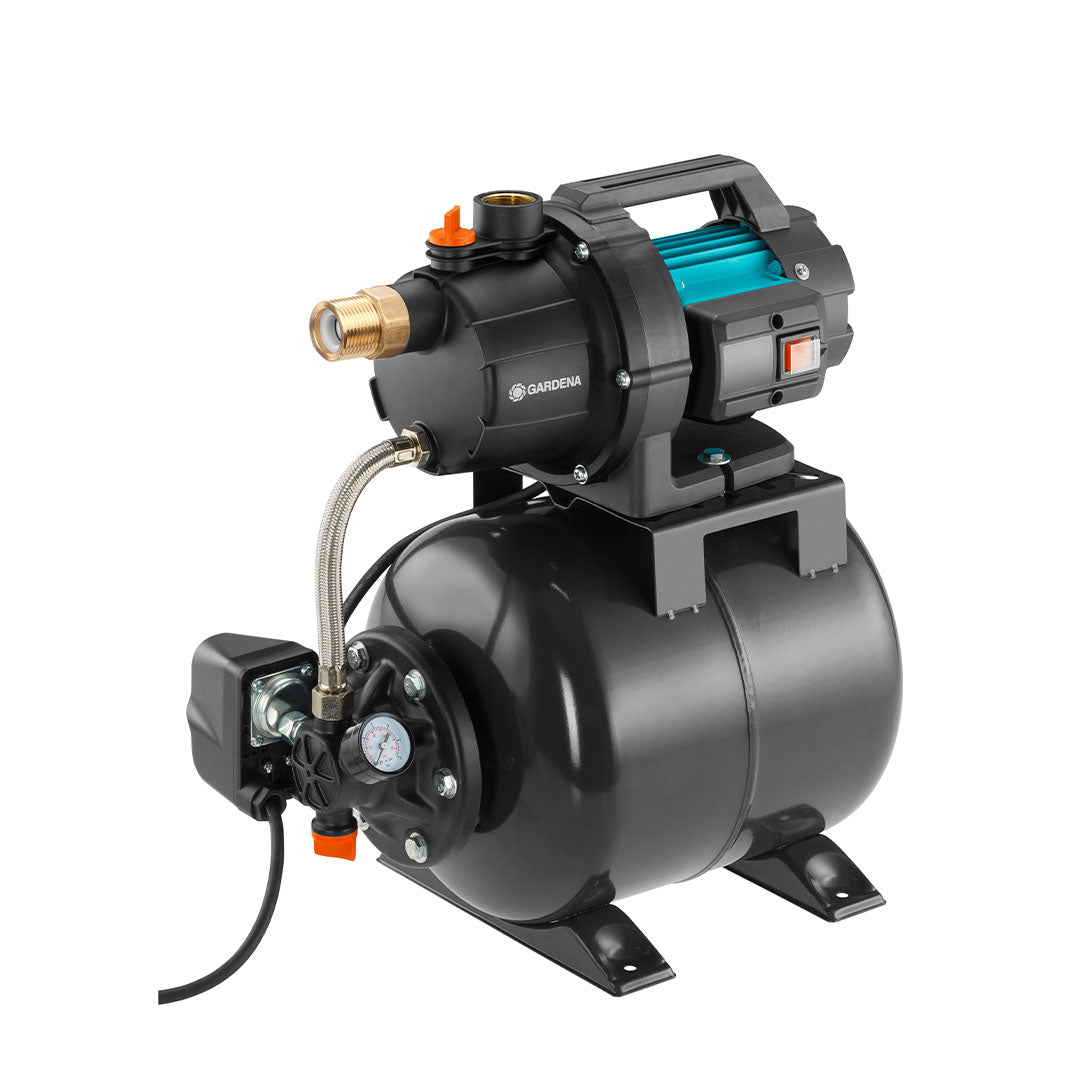

Gardena 3700/4 Pressure Tank Unit
800 W and 4.1 bar: tap pressure from your well or cistern.
This Gardena unit draws water from a well, cistern, or rainwater tank, and then supplies it under pressure to your house and garden. Its 19-litre tank stores the already-pressurized water: the motor doesn't restart every time you open a tap.
Your own pressurized water system
- Up to 3700 litres per hour, with a maximum pressure of 4.1 bar as specified by the manufacturer.
- Automatic priming draws water from up to 7 m below the pump: well, buried cistern, or rainwater tank.
Main features
- 19-litre tank — its EPDM membrane can be removed for maintenance and keeps water pressurized between draws.
- Double ceramic seal — shaft sealing is ensured by two ceramic seals.
- Stainless steel pump shaft — the rotating part is permanently resistant to water.
- Integrated thermal protection — the motor shuts down automatically if it overheats.

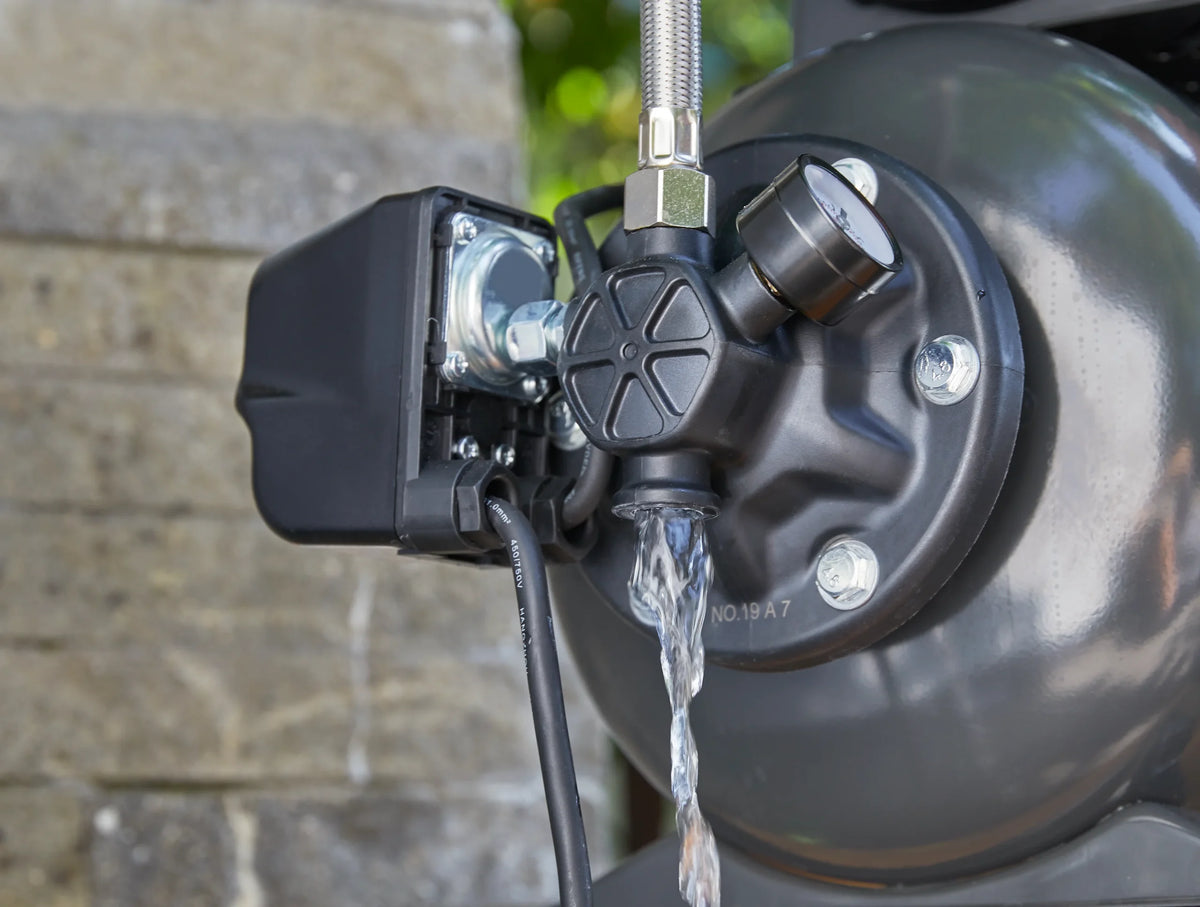

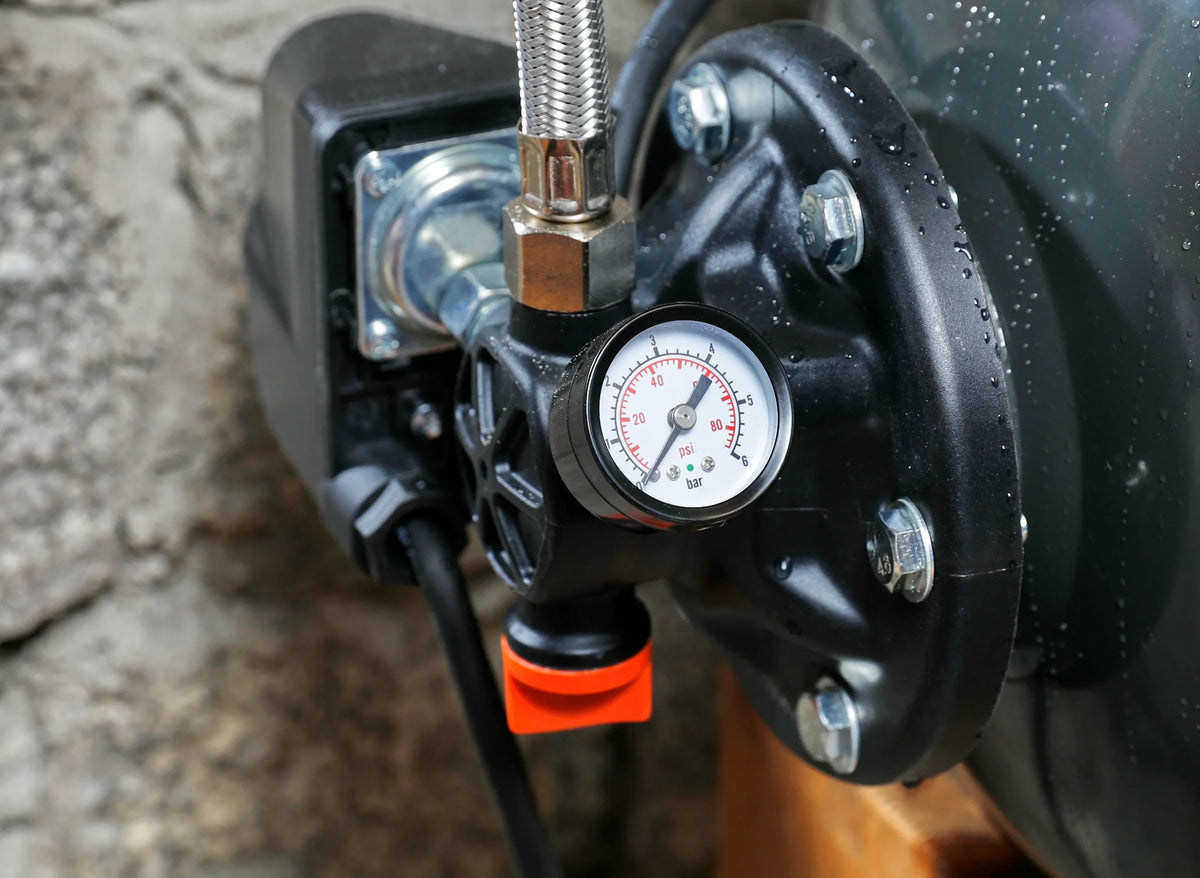

- Pressure gauge and non-return valve — pressure can be read directly on the dial, and water does not flow back into the suction line.
- Fiber-reinforced plastic housing, two G1″ outlets — the threads are equipped with brass inserts.
Technical specifications
| Feature | Detail |
|---|---|
| Sales reference | 9023-20 |
| EAN code (GTIN-13) | 4078500054720 |
| Rated power | 800 W |
| Maximum flow rate | 3700 l/h |
| Maximum pressure | 4.1 bar |
| Max. automatic priming suction | 7 m |
| Delivery head | 41 m |
| Max. liquid temperature | 35 °C |
| Cable length | 1.5 m |
| Power cable type | H05 RNF |
| Electric protection rating | IPX4 |
Fast delivery & simple installation

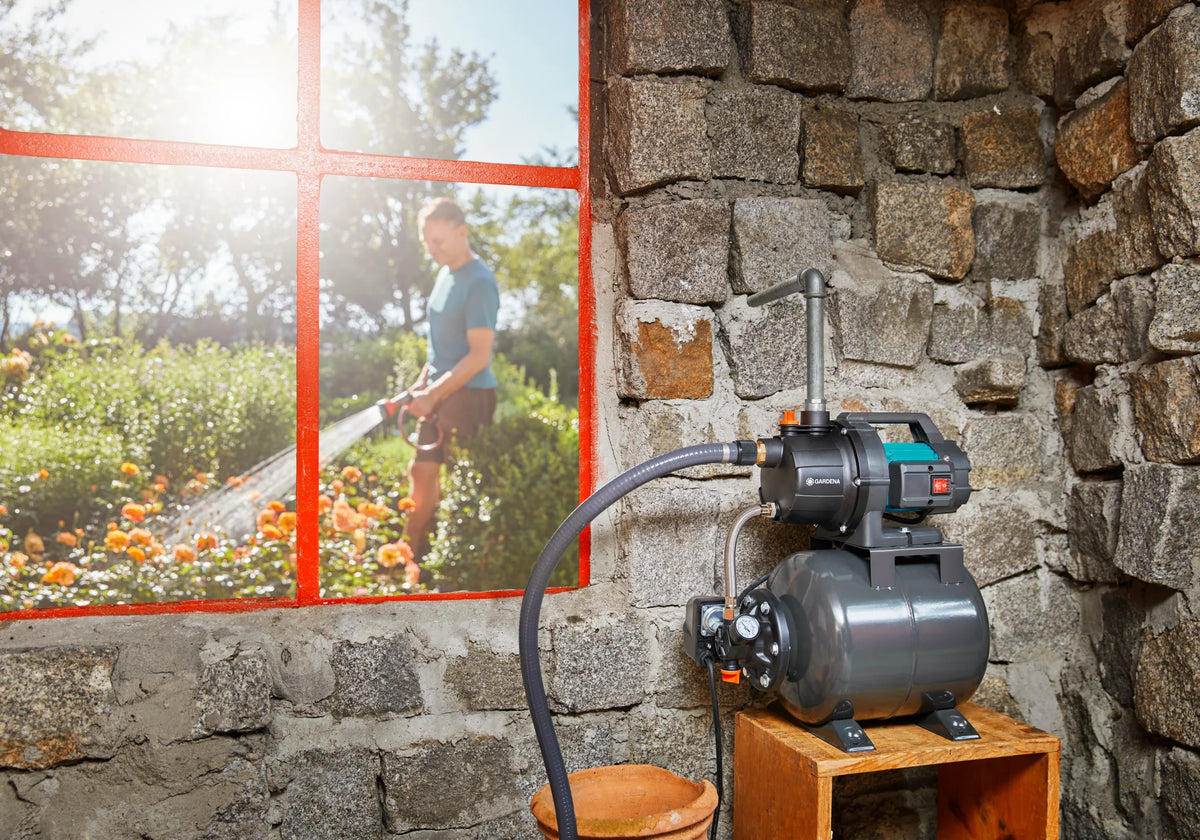

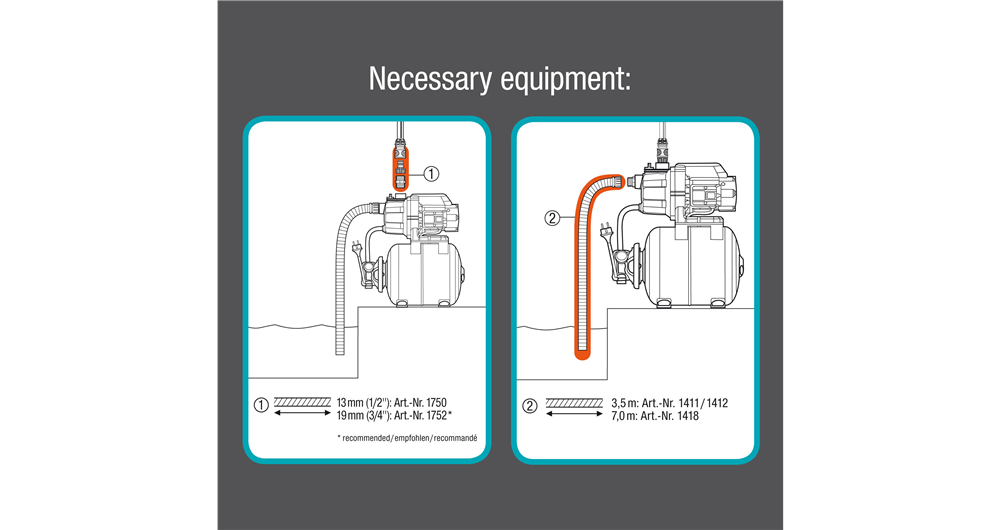

The unit should be installed in a dry, sheltered location, with a suction hose submerged in the well or cistern and a line leading to your network from one of the two G1″ outlets. The power cable is 1.5 m long: make sure a power socket is nearby. We deliver throughout Morocco, and you pay upon receipt.
Included in your purchase
- 1 Gardena 3700/4 pressure tank unit (ref. 9023-20)
- 19-litre EPDM membrane tank, mounted on the device
- Integrated pressure gauge and non-return valve
- 1.5 m power cable, type H05 RNF
Brico MIM after-sales service
You will receive a new Gardena device in its original packaging. No specific warranty duration is stated by the manufacturer for this item: we prefer not to make promises we cannot keep in this regard. Contact us before ordering if you would like to know the exact coverage conditions.
Customer service via phone, WhatsApp, and email, Monday to Saturday.
Frequently asked questions
Can it draw water from a well?
Yes, as long as the water level is at most 7 m below the pump: this is the automatic priming suction height specified by the manufacturer. Beyond that, it will not prime.
What flow rate will I actually get?

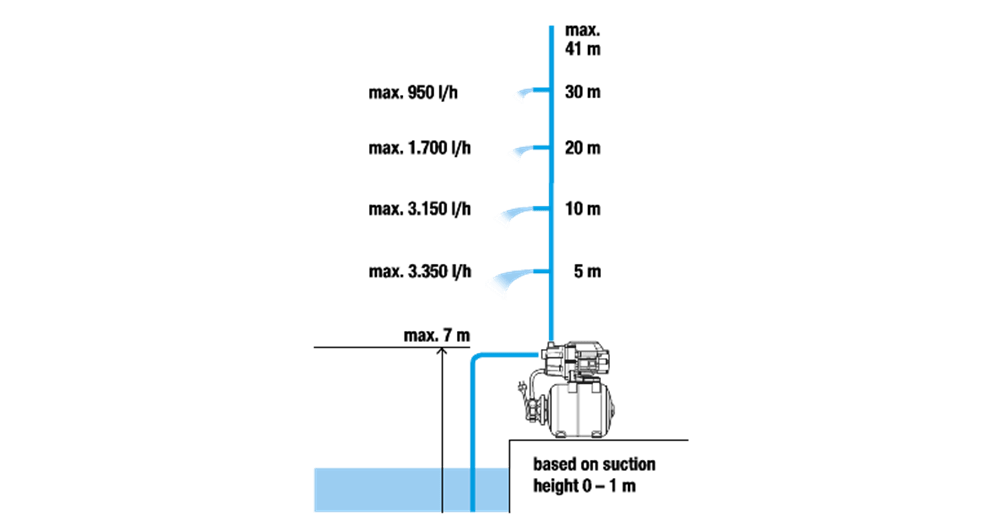

The 3700 l/h and 4.1 bar are the device's maximum values. Actual flow rate decreases as the lift height and length of the piping increase — this is the case for any pump.
Does the motor run continuously?
No. The 19-litre tank keeps the water pressurized; the pump only restarts when the pressure drops. For small amounts of water, it may remain off.
What water can it be used to pump?
The manufacturer recommends this device for well, cistern, and rainwater intended for household and garden use. The temperature of the liquid must not exceed 35 °C.
Where can I install it?
In a dry, ventilated area. The protection rating is IPX4: the device can withstand water splashes but must not be submerged. Since the cable is only 1.5 m long, the socket must be nearby.
What is the delivery time?
24 to 48 hours for the Casablanca–Rabat axis, 48 to 72 hours for other cities.
Order now from Brico MIM
Gardena 3700/4 pressure tank unit for 2,599.00 MAD — fast delivery throughout Morocco, payment on delivery, and Brico MIM after-sales service.
